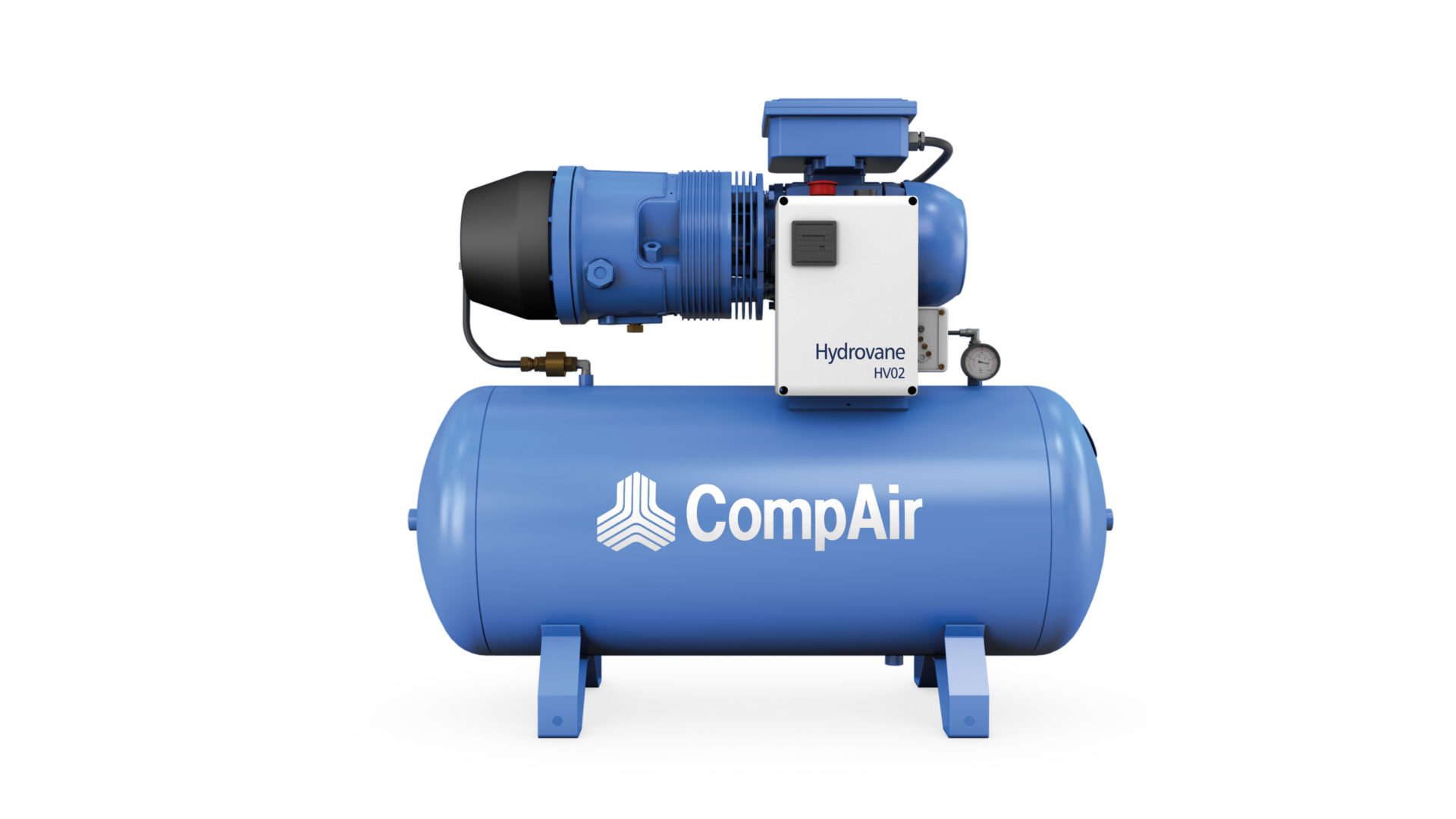

Hydrovane HV02 Receiver Mounted 2.2kW 1ph Single Phase Fixed Speed Rotary Vane Compressor
Hydrovane HV02 Receiver Mounted 1ph
Original price was: £3,480.00.£2,436.00Current price is: £2,436.00. excl. VAT
Hydrovane HV02 Receiver Mounted 1ph
£3,480.00 Original price was: £3,480.00.£2,436.00Current price is: £2,436.00. excl. VAT
The Hydrovane series 5 rotary sliding vane compressors are reliable, versatile, powerful and cost effective. Their compact, simple, robust and integrated design allows them to be fitted anywhere undercover.
This compressor comes with an hours counter, so that our customers can see how many the hours the compressor has run to ensure maintenance is carried out as per the manufacturer schedule.
Compressor Specification:
Compressor Model: Hydrovane HV02 Receiver Mounted 1ph
Drive Motor (kW): 2.2
Nominal Pressure (bar(g)): 10
FAD (m3/min): 0.23
CFM: 8.1
Noise level (dB(A)): 69
Dimensions L x W x H (mm): 966 x 386 x 784
For the product brochure Click Here
For the product drawing Click Here
For the product data sheet Click Here
We are the largest stockist of this compressor in the UK and can provide next day delivery on orders before 12 noon. The compressor will be delivered on a euro pallet.
Please contact us for a current lead time and questions about this product.
Note: All pictures shown are for illustration purpose only. Actual Product may vary.
