Air Energy offers the full range of Elmo Rietschle brand Vacuum Pumps and Blowers. Check the latest prices on our online shop page now.
Air Energy supplies Elmo Rietschle’s innovative vacuum pump and blower solutions to a wide range of applications and processes across many industries. These solutions reduce energy consumption, improve reliability and uptime, eliminate pollution and provide cost savings.
No matter what your focus is – we have the widest range of technologies for you to choose from and can satisfy all demands and requests for vacuum and pressure.
The applications of Radial blowers are mainly used in the packaging and paper industries, with the smaller units are suitable for extracting dust with fine material such as paper powder and powdered solids.
Benefits at a glance

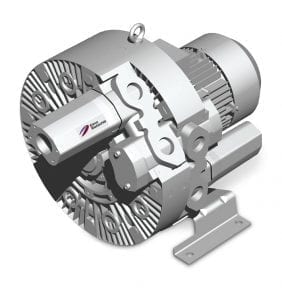

G-Series – Side Channel Blowers Leading in ExcellenceSome technologies are so good that it is hard to improve them. Side channel blowers from Elmo Rietschle are such an example. They have proven their reliability in service for many decades, performing flawlessly day in and day out with virtually no down time. Noise levels have been lower than that of most other vacuum pumps and compressors.
Side channel blowers are used for conveying gases and gas-air mixtures.
Advantages at a glance
L-Series – Compact Liquid Ring Pumps for Heavy DutyExtreme conditions, which prevail in humid and wet processes, lead to limescale or abrasion, and hence to a considerable reduction in the performance of the pump. Elmo Rietschle liquid ring pumps, however, meet these challenges.
The use of high-quality materials such as stainless steel and ceramics ensure utmost reliability and constant operating characteristics – for years to come.
Advantages at a glance
V-Series – Dry Running and Oil Lubricated Rotary Vane Pumps and CompressorsElmo Rietschle offers dry running and oil lubricated rotary vane pumps which cover a wide performance range.
The eco-friendly dry running rotary vane pumps are used for vacuum, pressure and combined pressure and vacuum applications. The time-tested oil lubricated rotary vane machines are typically used for generating vacuum.
Advantages at a glance
R-Series – Rotary Lobe Blowers: rugged and economicalThese compact rotary lobe blowers belong to the group of dry running positive displacement pumps. This means that there is no need for oil or grease in the compression chamber. Only gear box and bearings, which are separated from the pumping chamber, are oil lubricated. Two non contacting triple lobed rotary lobe rotors rotate against each other in the compression room.
The triple lobed rotors avoid pulsation problems. The blowers are customized to cater for the varying demands of our customers’ applications.
Advantages at a glance
C-Series – Innovative Claw TechnologyThe C-Series claw pumps and compressors of Elmo Rietschle generate contact-free vacuum or compressed air efficiently and economically. This is possible because of the principle of internal compression. The gas is pre-compressed within the compressing chamber and is then discharged.
This leads to an evident energy saving compared to rotary lobe blower designs without internal compression.
Advantages at a glance
S- Series – The Screw: dry running and low maintenance vacuum pumpThe S-VSI screw vacuum pump (sizes 100 and 300) represents modern, state-of-the-art dry running technology that excels when it comes to small carbon footprint and low life cycle costs. It is used in a variety of industrial applications such as drying and packaging.
The S-VSA and S-VSB dry running, contact-free screw vacuum pumps are primarily used in the chemical and pharmaceutical industries for processing applications. A contamination with oil or other operating liquids is impossible. Several pump sizes are available with ATEX certification.
Advantages at a glance
Elmo Rietschle provides innovative vacuum and compressed gas solutions to a wide range of applications and processes used in many industries. These solutions reduce energy consumption, improve reliability and uptime, eliminate pollution and provide cost savings.
By clicking on an industry listed below, you can learn more about the various applications and the correlated Elmo Rietschle products that will help with your type of vacuum and compressed gas needs.
Central vacuum supply – Relevant products: Liquid Ring, Rotary Vane, Screw, ClawCoating – Relevant products: Liquid Ring, Rotary Lobe, Screw
Cooling – Relevant products: Liquid Ring, Rotary Vane, Screw
Continuous and batch distillation – Relevant products: Rotary Vane, Screw
Degassing – Relevant products: Liquid Ring, Rotary Vane, Screw, Claw
Drying – Relevant products: Liquid Ring, Rotary Vane, Screw
Gas compression – Relevant products: Liquid Ring, Claw
Impregnation – Relevant products: Liquid Ring, Rotary Vane, Screw
Pneumatic conveying – Relevant products: Claw, Rotary Lobe
Solvent recovery – Relevant products: Liquid Ring, Rotary Vane, Screw
Thin-layer evaporation – Relevant products: Rotary Lobe, Rotary Vane, Screw
Biogas production – Related Products: Liquid Ring, Rotary Vane, Rotary Lobe, ClawCompressed air in wastewater treatment plants – Related Products: Side Channel, Rotary Lobe
Digester gas compression – Related Products: Liquid Ring
Filtering – Related Products: Side Channel, Rotary Lobe
Fish and prawn pond aeration – Related Products: Liquid Ring, Side Channel, Radial
Landfill site – Related Products: Claw
Laminating solar modules – Related Products: Screw, Rotary Vane, Systems
Soil gas extraction – Related Products: Side Channel
Suction vehicles for wastewater cleaning – Related Products: Liquid Ring, Side Channel, Rotary Lobe
Vacuum priming – Related Products: Liquid Ring
Wastewater disposal – Related Products: Liquid Ring
Wastewater purification/oxygenation of activated sludge tanks – Related Products: Liquid Ring, Side Channel, Rotary Lobe
Evacuation systems – Related Products: Radial, Rotary Lobe, Claw
Drying systems – Related Products: Radial, Rotary Lobe, Claw, Screw
Gas recirculation – Related Products: Rotary Lobe, Claw
Small domestic sewage plants – Related Products: Rotary Lobe
In recent decades the food and beverage industry has undergone widespread changes from small to middle and large firms. The ensuing “industrialisation” of food processing has created many applications that use vacuum pumps and compressors.
Bottle filling machines in breweries – Related Products: Liquid Ring, Rotary Vane
Chocolate production – Related Products: Liquid Ring
Cleaning of vegetables – Related Products: Side Channel
Coffee roasting – Related Products: Side Channel
Dairy processing – Related Products: Liquid Ring, Side Channel
Deaeration of mineral water – Related Products: Liquid Ring, Side Channel
Deodorizing of salad oils and fats – Related Products: Liquid Ring
Evacuation – Relevant Products: Rotary Vane, Screw, Side Channel
Filtration units – Related Products: Liquid Ring
Food preservation – Related Products: Liquid Ring
Fruit processing machines – Related Products: Side Channel
Ham drying – Related Products: Liquid Ring, Side Channel
Humidification of tobacco – Related Products: Liquid Ring
Milking systems – Related Products: Liquid Ring, Side Channel, Rotary Vane
Potato aeration – Related Products: Side Channel
Poultry processing – Related Products: Liquid Ring
Salmon cleaning machines – Related Products: Side Channel
Sausage production – Related Products: Liquid Ring
Sterilization of tea and spices – Related Products: Liquid Ring
Sugar production – Related Products: Liquid Ring
Systems for cleaning fish and molluscs – Related Products: Liquid Ring
Filling and closing machines – Relevant Products: Liquid Ring, Side ChannelFood packaging – Relevant Products: Rotary Vane, Screw, Side Channel
Forming – Relevant Products: Rotary Vane
Modified atmosphere packaging (MAP) – Related Products: Liquid Ring
Production of PET containers – Relevant Products: Liquid Ring
Tray sealing – Relevant Products: Rotary Vane, Screw, Side Channel
Trim removal – Relevant Products: Side Channel, Radial
Further applications
Pick + Place
Freeze drying
Soft Ice Dispensing
Non-food
Air cushion machines – Relevant Products: Side Channel
Blister machines – Relevant Products: Liquid Ring
Evacuation – Relevant Products: Liquid Ring
Filling and closing units (Chamber & Rolling machines) – Relevant Products: Liquid Ring, Side Channel
Forming – Relevant Products: Rotary Vane
Non-food packaging – Relevant Products: Rotary Vane, Screw, Side Channel, Liquid Ring
Production of paper bags – Relevant Products: Liquid Ring
Reduction of transport volume – Relevant Products: Side Channel
Tray sealing – Relevant Products: Rotary Vane, Screw, Side Channel
Trim removal – Relevant Products: Side Channel, Radial
Further applications
Palletising
Drying
Holding
De-oiling under vacuum – Relevant Products: Liquid Ring, Rotary Vane, Claw, ScrewDry-blasting – Relevant Products: Side Channel
Flood injection washing under vacuum – Relevant Products: Liquid Ring, Rotary Vane, Claw, Screw
Vacuum drying – Relevant Products: Liquid Ring, Rotary Vane, Screw
Calibration – Relevant Products: Liquid RingContact-free turning of plastic film – Relevant Products: Side Channel
Cooling and drying of extruded plastics – Relevant Products: Side Channel, Radial
Degassing extruders – Relevant products: Liquid Ring, Screw, Rotary Lobe, Systems
Degassing of rubber parts – Relevant Products: Liquid Ring, Screw, Rotary Vane
Dryers – Relevant products: Side Channel, Radial
EPS-Foaming – Relevant Products: Liquid Ring, Screw
Generation of compressed air for plastic welding – Relevant Products: Side Channel, Radial
Granule conveying systems – Relevant products: Side Channel, Liquid Ring, Claw, Rotary Vane
Production of composite material – Relevant Products: Liquid Ring, Screw, Claw, Rotary Vane
Due to the special properties of paper, vacuum and compressed air are essential features in paper manufacturing and processing.
Pre-Press
Scanner
Printing Plate Processing
Film Fixing
Plate Copy Equipment
Relevant Products: Side Channel
Press
Presses
Sheet Fed Offset Machines
Rotary Offset Machines
Screen Printing Machines
Flexo Printing Machines
Tin Printing Machines
Press components
Drying Aggregates
Powder Aggregates
Ionization Aggregates
Relevant Products: Claw, Side Channel
Post-Press
Post-Press machines
Book Binders
Cutting Machines
Envelop Sealing Machines
Folding Machines
Mail Sorting Systems
Post-Press components
Paper Stack Lifts
Loaders and Unloaders for Cutting Machines
Pallet Air Lifts
Air-Tables
Gripper Systems
Paper Joggers
Relevant Products: Claw, Side Channel, Rotary Vane, Radial
Air-Center
Customer-specific adaptation of air demand in the printing and paper industry is best achieved by using the modular Elmo Rietschle Air-Center. They assure a higher operating safety through extremely low noise levels and lower temperature. The air consumption can be adapted to individual print jobs, which means a considerable reduction in set-up costs and energy consumption.
Relevant Products: Claw, Side Channel, Rotary Vane, Rotary Lobe, Radial
In the production of bricks, roofing tiles, porcelain and technical ceramics, an important mark of quality is a product free of air pockets. When fired, ceramics containing such pockets can be destroyed in the kiln and, in extreme cases, can even cause the destruction of the entire batch. In bricks, this quality defect usually takes years to appear; during the winter, water penetrates the surface pores and causes them to burst.
Air removal from clay
After brick clay is loaded into the extruder, a vacuum serves to remove the air, thus preventing the formation of air pockets and the subsequent breakage of bricks. Similar to brick clay, ceramic clay is first placed in a mixer and pressurized with water or water vapour to form a homogeneous mixture. It is then transferred to an extruder where it is pressed into moulds under high pressure. The material is then extruded to the proper length, dried and fired.
Related Products: Liquid Ring, Systems
Large volumes of compressed air and vacuum are required in the manufacturing process of hollow glassware. High quality and reliability of all units and components is of prime importance, because equipment failure during production invariably means extremely high costs. For continuous 24-hour operation, rotary vane compressors and vacuum pumps offer the best solution.
Compressed air is used to form the blanks in the production machines. A compressed air system is needed to control the various shaping devices and the general air supply of the factory.
Rotary vane vacuum pumps are used to evacuate the glass moulds. This ensures high product quality and increasing the number of pieces per hour poses no problem.
For higher volumes vacuum pump stands are used. These two-stage systems consist of a rotary lobe and rotary vane vacuum pump and are used in the production of electric light bulbs and fluorescent tubes.
Related Products: Systems
Circular and flat knitting machines – Related Products: Side ChannelDraining and drying of dyed carpeting – Related Products: Liquid Ring
Fabric cutting tables – Related Products: Side Channel
Power air looms – Related Products: Side Channel
Sock knitting machines – Related Products: Side Channel
Steam treatment of yarn – Related Products: Liquid Ring
Holding and lifting – Related Products: Liquid Ring, Claw, Side Channel, Rotary VanePreservation – Related Products: Liquid Ring
Wood drying – Related Products: Liquid Ring, Rotary Lobe
Air beds – Relevant Products: Side ChannelChairlift – Relevant Products: Side Channel
Central vacuum systems – Relevant Products: Liquid Ring, Rotary Vane, Claw
Dentistry – Relevant Products: Side Channel, Rotary Vane
Steam sterilization (autoclaving) – Relevant Products: Liquid Ring
Technical and medical respiratory devices – Relevant Products: Side Channel
Drying of electronic components – Related Products: Side ChannelPick, Place and Assembling – Related Products: Liquid Ring, Side Channel, Rotary Lobe
Suction conveyance systems – Relevant products: Side Channel, Liquid Ring, Rotary Vane, ClawPressure Conveyance Installation – Relevant Products: Side Channel, Liquid Ring, Rotary Vane, Claw
Air Energy offers the full range of Elmo Rietschle Vacuum Pumps and Blowers. Download the product brochure now.
Side Channel Blowers operate by sucking in air/gas through the inlet channel, which then enters the machine. The rotation of the impellers gives momentum to the air/gas in the direction of rotation. Centrifugal force in the impeller blades accelerate the air/gas outwards, increasing its pressure. Kinetic energy is displaced with every rotation of the impellers. The Pump narrows at the rotor, sweeping air/gas off the impeller blades and expelling it through the outlet silencer where it exits the blower.
The Vacuum pump which is best for you is dependent on your application and requirements. There are a large variety of pumps available which can be used for Vacuum, including but not limited to; Side Channel Blowers, Claw Pumps, Rotary Vanes etc.
There are a number of potential reasons why a vacuum pump may not be working or operating accordingly. If you are experiencing issues with your equipment, please contact Air Energy Ltd and we can fault find accordingly to identify a solution for you.
Call Air Energy on 01992 586666 or email info@airenergyuk.com for more information. We are also happy to answer any price queries about any pump or blower from our online store. Alternatively, please see our full range of Air Compressor solutions here
